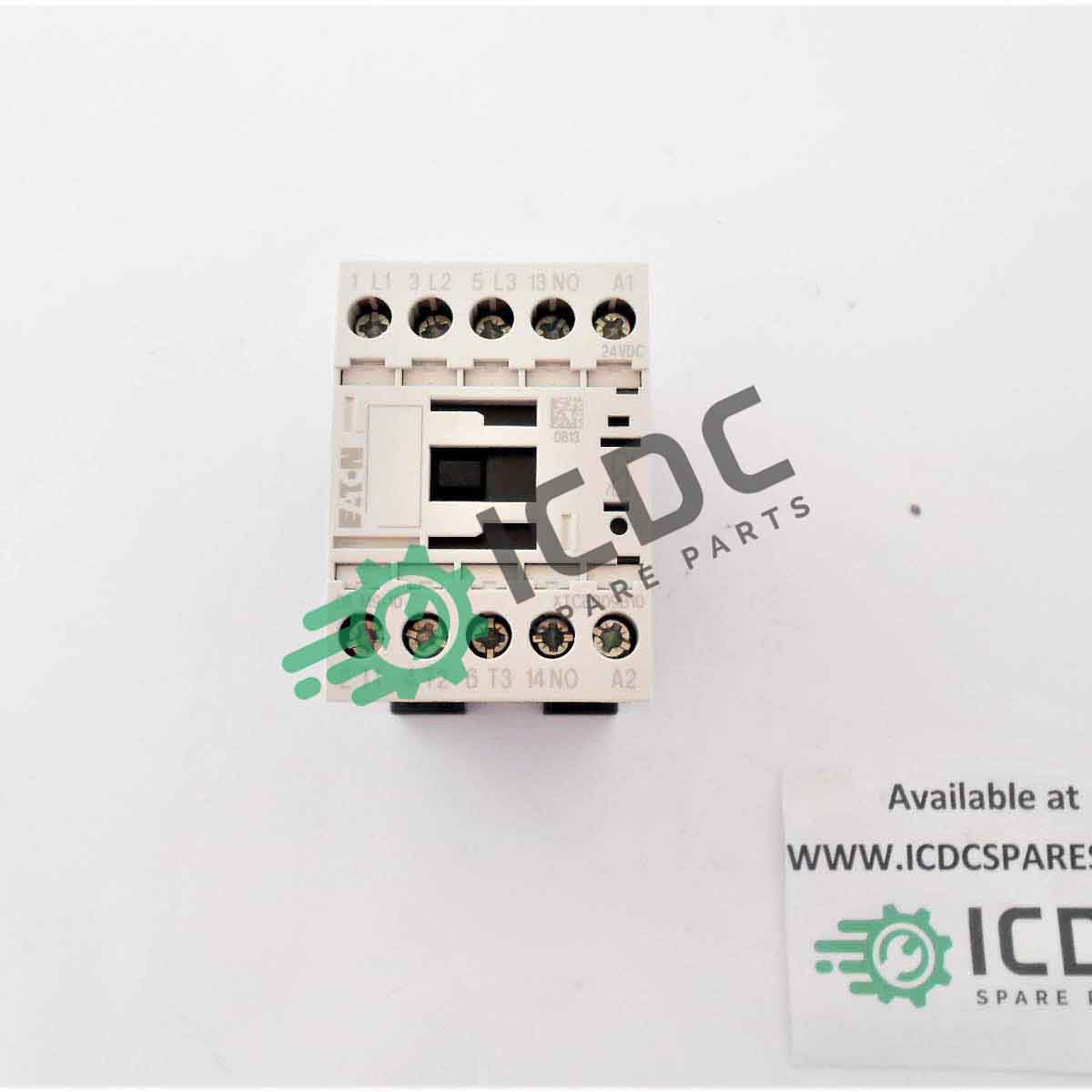

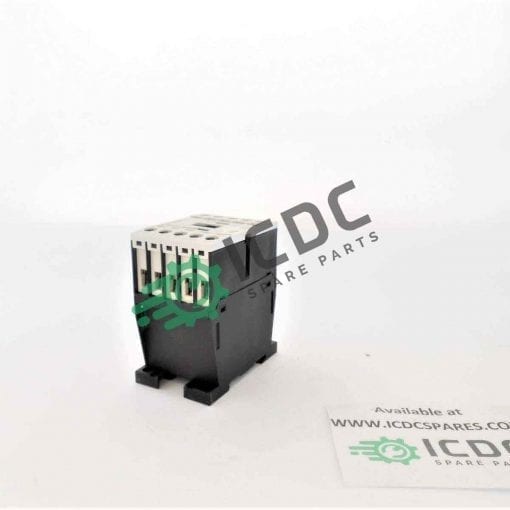

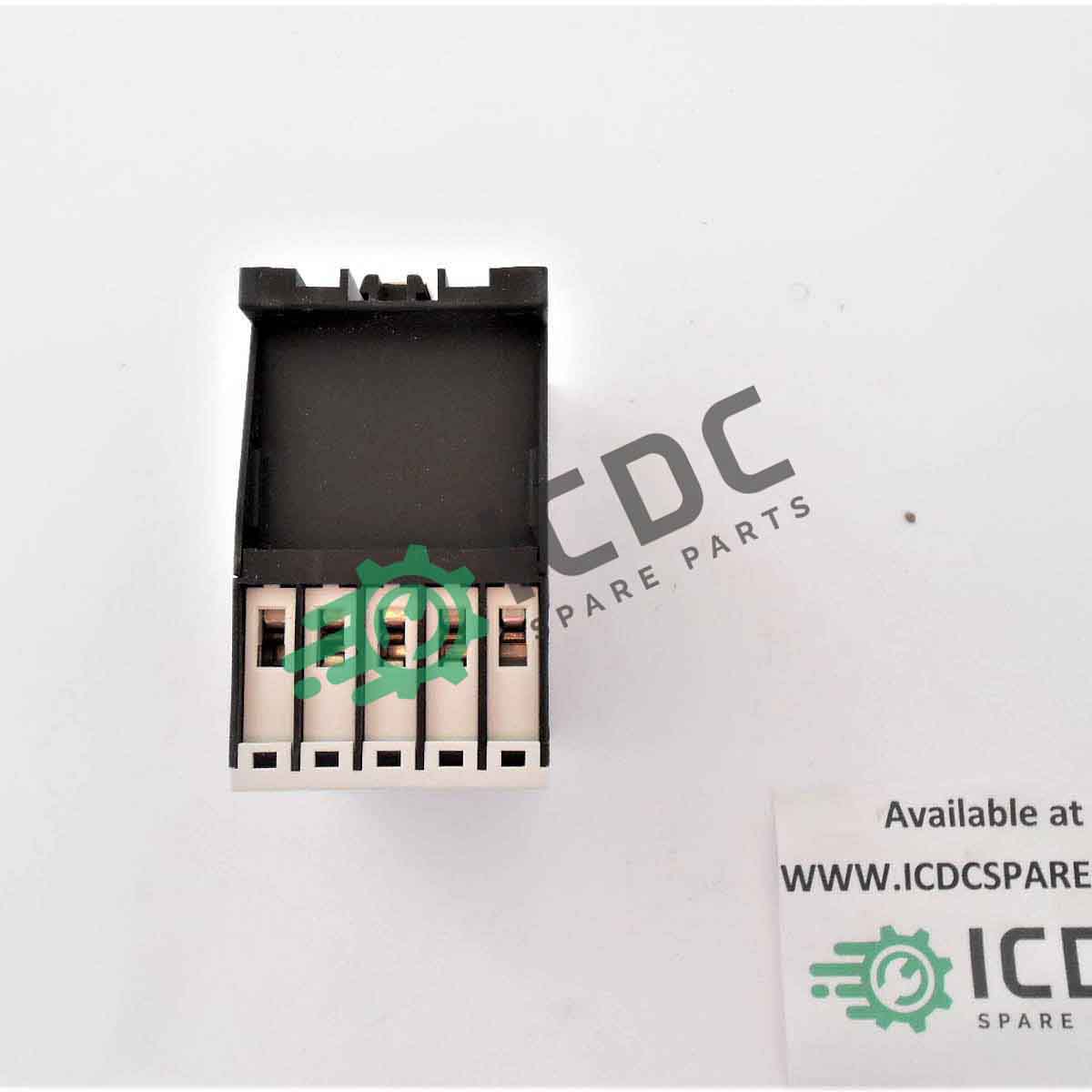

KLOCKNER MOELLER by EATON - DILM9-10 276705 - Power Contactor 3-Pole

KLOCKNER MOELLER by EATON – DILM9-10-276705 – Power Contactor 3-Pole

Main Category: Electromechanical | Sub-Category: Connectors-Contactors | Status: New Original Components
MOELLER by EATON Part Number: DILM9-10-276705 | ICDC Part Number: ICDC-006690

Description:

DILM9-10 24VDC – Power contactor, 3p + 1NO, 4kW / 400V / AC3
Art. 276705
SUPPLY PROGRAM
Assortment
Power contactors
Application
Power contactor for motors
Below range
Power contactors up to 170 A, 3 poles
Use category
AC-1: Non-inductive or weakly inductive load, resistance furnaces
AC-3 / AC-3e: squirrel-cage motors: starting, stopping during operation
AC-4: Squirrel-cage motors: starting, electric counter-current brakes, reversing, movements impulse
Note
Can also be used for IE3 efficiency class motors.
Types of connection
Screw terminals Poly 3-pole
Rated operational currenT AC-3
Note
At maximum allowable ambient temperature (open)
Also tested in accordance with AC-3e.AC-3 380 V 400 V [I e ]  9 A  AC-1  conventional free air thermal current, 3 poles, 50 – 60 Hz per day at 40 ° C [I th =I and ] 22 A  AC-1 conventional free air thermal current, 3 poles, 50 – 60 Hz in custody [I th ] 18 A AC-1
Conventional thermal current 1 pole per day [I th ] 50 A AC-1
Conventional thermal current 1 pole in custody [I th ] 45 A
Max. Rated power of use for three-phase motors 50 – 60 Hz – AC-3 – 220V 230V – 2.5 kW – AC-3 – 380 V 400 V – 4 kW
AC-3
660 V 690 V [P] 4.5 kW
AC-4
220V 230V [P] 1.5 kW
AC-4
380 V 400 V [P] 2.5 kW
AC-4
660 V 690 V [P] 3.6 kW
Contact equipment
NA = norm. open
1 NO contact
Combinable with auxiliary contact
DILM32-XHI …
DILA-XHI (V) …
Control voltage
24 V DC
Type of current AC / DC
Direct current control
Connection to SmartWire-DT
yes
together with the DT DIL-SWD SmartWire contactor module
Note
Contact devices according to EN 50012.
Integrated varistor protection circuit
Size
1
TECHNICAL DATA
Generality
Compliance with standards IEC / EN 60947, VDE 0660, UL, CSA
Durability, mechanics
Direct current command [Operations] 10 x 10 6
Operating frequency, mechanics controlled in DC [Man / h] 9000
Suitability for climates
Humid heat, constant, according to IEC 60068-2-78
Humid heat, cyclic according to IEC 60068-2-30
Room temperature per day -25 – +60 ° C
Room temperature in custody – 25 – 40 ° C
Room temperature Storage -40 – 80 ° C
Shock resistance (IEC / EN 60068-2-27)
Sinusoidal shock 10 ms
Main contacts
NA contacts
10 g
Shock resistance (IEC / EN 60068-2-27)
Sinusoidal shock 10 ms
Auxiliary contacts
NA contacts
7 g
Shock resistance (IEC / EN 60068-2-27)
Sinusoidal shock 10 ms
Auxiliary contacts
NC contacts
5 g
Shock resistance (IEC / EN 60068-2-27) in table mounting
Sinusoidal shock 10 ms
Main contacts
NO contact
5.7 g
Shock resistance (IEC / EN 60068-2-27) in table mounting
Sinusoidal shock 10 ms
Auxiliary contacts
NO contact
3.4 g
Shock resistance (IEC / EN 60068-2-27) in table mounting
Sinusoidal shock 10 ms
Auxiliary contacts
NC contact
3.4 g
Degree of protection
IP20
Protection against accidental contact in case of frontal actuation (EN 50274)
Protection against finger and back of hand contact
Altitude
max. 2000 mm
Weight
controlled in DC
0.296 kg
Screw connection type
Main conductor connection cross sections
Stiff
1 x (0.75 – 4)
2 x (0.75 – 2.5) mm 2
Screw connection type
Main conductor connection cross sections
Flexible with ferrule
1 x (0.75 – 2.5)
2 x (0.75 – 2.5) mm 2
Screw connection type
Main conductor connection cross sections
Single wire or stranded
single 18 – 10, double 18 – 14 AWG
Screw connection type
Main conductor connection cross sections
Stripping length
10 mm
Screw connection type
Main conductor connection cross sections
Connecting screw
M3.5
Screw connection type
Main conductor connection cross sections
Starting time
1.2 Nm
Screw connection type
Main conductor connection cross sections
Tool
Pozidriv screwdriver
2 Size
Screw connection type
Main conductor connection cross sections
Tool
Flat-blade screwdriver
0.8 x 5.5
1 x 6 mm
Screw connection type
Auxiliary conductors connection cross sections
Stiff
1 x (0.75 – 4)
2 x (0.75 – 2.5) mm 2
Screw connection type
Auxiliary conductors connection cross sections
Flexible with ferrule
1 x (0.75 – 2.5)
2 x (0.75 – 2.5) mm 2
Screw connection type
Auxiliary conductors connection cross sections
Rigid or semi-rigid
18 – 14 AWG
Screw connection type
Auxiliary conductors connection cross sections
Stripping length
10 mm
Screw connection type
Auxiliary conductors connection cross sections
Connecting screw
M3.5
Screw connection type
Auxiliary conductors connection cross sections
Starting time
1.2 Nm
Screw connection type
Auxiliary conductors connection cross sections
Tool
Pozidriv screwdriver
2 Size
Screw connection type
Auxiliary conductors connection cross sections
Tool
Flat-blade screwdriver
0.8 x 5.5
1 x 6 mm
Main circuit
Rated impulse withstand voltage [U imp ] 8000 V AC
Overvoltage category / pollution degree
III / 3
Rated insulation voltage [U i ] 690 V AC
Rated operational voltage [U e ] 690 V AC
Safe isolation according to EN 61140
between coil and contacts
400 V AC
Safe isolation according to EN 61140
between contacts
400 V AC
Making capacity (cos ϕ according to IEC / EN 60947) [up to 690 V] 126 A
Opening power
220V 230V
90 A
Opening power
380 V 400 V
90 A
Opening power
500 V
70 A
Opening power
660 V 690 V
50 A
Short circuit resistance
Short circuit protection fuse max
Type of assignment2
400 V [gG / gL 500 V] 20 A
Short circuit resistance
Short circuit protection fuse max
Type of assignment2
690 V [gG / gL 690 V] 16 A
Short circuit resistance
Short circuit protection fuse max
Type of assignment1
400 V [gG / gL 500 V] 35 A
Short circuit resistance
Short circuit protection fuse max
Type of assignment1
690 V [gG / gL 690 V] 20 A
Alternating voltage
AC-1
Rated operational current
conventional free air thermal current, 3 poles, 50 – 60 Hz
per day
at 40 ° C [I th =I and ] 22 A
AC-1
Rated operational current
conventional free air thermal current, 3 poles, 50 – 60 Hz
per day
at 50 ° C [I th =I and ] 21 A
AC-1
Rated operational current
conventional free air thermal current, 3 poles, 50 – 60 Hz
per day
at 55 ° C [I th =I and ] 21 A
AC-1
Rated operational current
conventional free air thermal current, 3 poles, 50 – 60 Hz
per day
at 60 ° C [I th =I and ] 20 A
AC-1
Rated operational current
conventional free air thermal current, 3 poles, 50 – 60 Hz
in custody [I th ] 18 A
AC-1
Rated operational current
Conventional thermal current 1 pole
per day [I th ] 50 A
AC-1
Rated operational current
Conventional thermal current 1 pole
in custody [I th ] 45 A
AC-3
Rated operational current
open, 3 poles, 50 – 60 Hz
Note
At maximum allowable ambient temperature (open)
Also tested in accordance with AC-3e.
AC-3
Rated operational current
open, 3 poles, 50 – 60 Hz
220V 230V [I e ] 9 A
AC-3
Rated operational current
open, 3 poles, 50 – 60 Hz
240 V [I e ] 9 A
AC-3
Rated operational current
open, 3 poles, 50 – 60 Hz
380 V 400 V [I e ] 9 A
AC-3
Rated operational current
open, 3 poles, 50 – 60 Hz
415 V [I e ] 9 A
AC-3
Rated operational current
open, 3 poles, 50 – 60 Hz
440 V [I e ] 9 A
AC-3
Rated operational current
open, 3 poles, 50 – 60 Hz
500 V [I e ] 7 A
AC-3
Rated operational current
open, 3 poles, 50 – 60 Hz
660 V 690 V [I e ] 5 A
AC-3
Rated absorbed power [P] 220 V 230 V [P] 2.5 kW
AC-3
Rated absorbed power [P] 240 V [P] 3 kW
AC-3
Rated absorbed power [P] 380 V 400 V [P] 4 kW
AC-3
Rated absorbed power [P] 415 V [P] 5.5 kW
AC-3
Rated absorbed power [P] 440 V [P] 5.5 kW
AC-3
Rated absorbed power [P] 500 V [P] 4.5 kW
AC-3
Rated absorbed power [P] 660 V 690 V [P] 4.5 kW
AC-4
open, 3 poles, 50 – 60 Hz
220V 230V [I e ] 6 A
AC-4
open, 3 poles, 50 – 60 Hz
240 V [I e ] 6 A
AC-4
open, 3 poles, 50 – 60 Hz
380 V 400 V [I e ] 6 A
AC-4
open, 3 poles, 50 – 60 Hz
415 V [I e ] 6 A
AC-4
open, 3 poles, 50 – 60 Hz
440 V [I e ] 6 A
AC-4
open, 3 poles, 50 – 60 Hz
500 V [I e ] 5 A
AC-4
open, 3 poles, 50 – 60 Hz
660 V 690 V [I e ] 4.5 A
AC-4
Rated absorbed power [P] 220V 230V [P] 1.5 kW
AC-4
Rated absorbed power [P] 240 V [P] 1.6 kW
AC-4
Rated absorbed power [P] 380 V 400 V [P] 2.5 kW
AC-4
Rated absorbed power [P] 415 V [P] 2.8 kW
AC-4
Rated absorbed power [P] 440 V [P] 3 kW
AC-4
Rated absorbed power [P] 500 V [P] 2.8 kW
AC-4
Rated absorbed power [P] 660 V 690 V [P] 3.6 kW
Continuous voltage
of three-phase open capacitors
DC-1
60 V [I e ] 20 A
of three-phase open capacitors
DC-1
110 V [I e ] 20 A
of three-phase open capacitors
DC-1
220 V [I e ] 15 A
Thermal dissipation (3 poles)
3 pole, with I th (60 °)
4.4 W
Thermal dissipation with I and according to AC-3/400 V
0.9 W
Impedance per pole
4.6 mΩ
Electromagnetic system
Voltage safety
Command in DC [Insertion] 0.8 – 1.1 x U c
Voltage safety
Note
0.85 – 1.1 only with auxiliary contact modules with 3 or more NC contacts
0.7 – 1.3 without auxiliary contact module and with an ambient temperature of +40 ° C
Voltage safety
Dropout voltage with DC command [Disconnect] 0.15 – 0.6 x U c
Voltage safety
Note
two half-wave rectifier bridge leveled at minimum or AC rectifier
Absorbed power of the coil when cold and with 1.0 x U S
Direct current control [Insertion] 4.5 W
Absorbed power of the coil when cold and with 1.0 x U S
DC control [Hold] 4.5 W
Duration of insertion
100% on duration
Operating times at 100% U C (indicative values)
Main contacts
controlled in DC
Closing time
Closing time
<31 ms
Operating times at 100% U C (indicative values)
Main contacts
controlled in DC
Opening time
Opening time
<12 ms
Operating times at 100% U C (indicative values)
Duration of the arc
10 ms
Electromagnetic Compatibility (EMC)
Interference emitted
according to EN 60947-1
Noise immunity
according to EN 60947-1
Power data approved
Breaking power
Maximum engine power
three-phase
200V
208V
3 HP
Breaking power
Maximum engine power
three-phase
230 V
240 V
3 HP
Breaking power
Maximum engine power
three-phase
460V
480V
5 HP
Breaking power
Maximum engine power
three-phase
575V
600V
7.5 HP
Breaking power
Maximum engine power
single phase
115V
120V
0.5 HP
Breaking power
Maximum engine power
single phase
230 V
240 V
1.5 HP
Breaking power
General use
20 A
Auxiliary contacts
Pilot Duty
Control in alternating current
A600
Auxiliary contacts
Pilot Duty
Direct current control
P300
Auxiliary contacts
General Use
B.C
600 V
Auxiliary contacts
General Use
B.C
10 A
Auxiliary contacts
General Use
A.D
250 V
Auxiliary contacts
General Use
A.D
1 A
Short Circuit Current Rating
Basic Rating
SCCR
5 kA
Short Circuit Current Rating
Basic Rating
max. Fuse
45 A
Short Circuit Current Rating
Basic Rating
max. CB
60 A
Short Circuit Current Rating
480 V High Fault
SCCR (Fuse)
30/100 kA
Short Circuit Current Rating
480 V High Fault
max. Fuse
25 Class RK5 / 20 Class JA
Short Circuit Current Rating
480 V High Fault
SCCR (CB)
65 kA
Short Circuit Current Rating
480 V High Fault
max. CB
16 A
Short Circuit Current Rating
600 V High Fault
SCCR (Fuse)
30/100 kA
Short Circuit Current Rating
600 V High Fault
max. Fuse
25 Class RK5 / 20 Class JA
Special Purpose Ratings
Electrical Discharge Lamps (Ballast)
480V 60Hz three phase, 277V 60Hz single phase
18 A
Special Purpose Ratings
Electrical Discharge Lamps (Ballast)
600V 60Hz three-phase, 347V 60Hz single-phase
18 A
Special Purpose Ratings
Incandescent Lamps (Tungsten)
480V 60Hz three phase, 277V 60Hz single phase
14 A
Special Purpose Ratings
Incandescent Lamps (Tungsten)
600V 60Hz three-phase, 347V 60Hz single-phase
14 A
Special Purpose Ratings
Resistance Air Heating
480V 60Hz three phase, 277V 60Hz single phase
18 A
Special Purpose Ratings
Resistance Air Heating
600V 60Hz three-phase, 347V 60Hz single-phase
18 A
Special Purpose Ratings
Refrigeration Control (CSA only)
LRA 480V 60Hz three-phase
60 A
Special Purpose Ratings
Refrigeration Control (CSA only)
FLA 480V 60Hz three-phase
10 A
Special Purpose Ratings
Refrigeration Control (CSA only)
LRA 600V 60Hz three-phase
60 A
Special Purpose Ratings
Refrigeration Control (CSA only)
FLA 600V 60Hz three-phase
10 A
Special Purpose Ratings
Definite Purpose Ratings (100,000 cycles acc. To UL 1995)
LRA 480V 60Hz three-phase
54 A
Special Purpose Ratings
Definite Purpose Ratings (100,000 cycles acc. To UL 1995)
FLA 480V 60Hz three-phase
9 A
Special Purpose Ratings
Elevator Control
200V 60Hz three-phase
2 HP
Special Purpose Ratings
Elevator Control
200V 60Hz three-phase
7.8 A
Special Purpose Ratings
Elevator Control
240V 60Hz three-phase
2 HP
Special Purpose Ratings
Elevator Control
240V 60Hz three-phase
6.8 A
Special Purpose Ratings
Elevator Control
480V 60Hz three phase
3 HP
Special Purpose Ratings
Elevator Control
480V 60Hz three phase
4.8 A
Special Purpose Ratings
Elevator Control
600V 60Hz three-phase
5 HP
Special Purpose Ratings
Elevator Control
600V 60Hz three-phase
6.1 A
DESIGN VERIFICATIONS ACCORDING TO IEC / EN 61439
Technical data for design checks
Rated operational current for dissipation data [I n ] 9 A
Dissipation per pole, as a function of the current [P vid ] 0.3 W
Device dissipation, depending on the current [P vid ] 0 W
Static dissipation, independent of the current [P vs ] 4.5 W
Dissipation power [P ve ] 0 W
Ambient service temperature min.
-25 ° C
Ambient service temperature max.
+60 ° C
IEC / EN 61439 design verifications
10.2 Suitability of materials and components
10.2.2 Corrosion resistance
The requirements of the product standard are met.
10.2 Suitability of materials and components
10.2.3.1 Resistance of the enclosure to heat
The requirements of the product standard are met.
10.2 Suitability of materials and components
10.2.3.2 Resistance of insulating materials to normal heat levels
The requirements of the product standard are met.
10.2 Suitability of materials and components
10.2.3.3 Resistance of insulating materials to extraordinary heat levels
The requirements of the product standard are met.
10.2 Suitability of materials and components
10.2.4 Resistance to UV radiation
The requirements of the product standard are met.
10.2 Suitability of materials and components
10.2.5 Lifting
Not relevant as the whole electrical panel needs to be evaluated.
10.2 Suitability of materials and components
10.2.6 Impact test
Not relevant as the whole electrical panel needs to be evaluated.
10.2 Suitability of materials and components
10.2.7 Lettering
The requirements of the product standard are met.
10.3 Degree of protection of the enclosures
Not relevant as the whole electrical panel needs to be evaluated.
10.4 Airborne and superficial dispersion routes
The requirements of the product standard are met.
10.5 Protection against electric shock
Not relevant as the whole electrical panel needs to be evaluated.
10.6 Flush mounting of devices
Not relevant as the whole electrical panel needs to be evaluated.
10.7 Internal circuits and connections
It is the responsibility of the manufacturer of the electrical panel.
10.8 Connections for conductors introduced from outside
It is the responsibility of the manufacturer of the electrical panel.
10.9 Insulation characteristics
10.9.2 Dielectric strength at mains frequency
It is the responsibility of the manufacturer of the electrical panel.
10.9 Insulation characteristics
10.9.3 Impulse withstand voltage
It is the responsibility of the manufacturer of the electrical panel.
10.9 Insulation characteristics
10.9.4 Verification of enclosures in insulating material
It is the responsibility of the manufacturer of the electrical panel.
10.10 Heating
The superheat calculation is the responsibility of the electrical panel builder. Eaton provides equipment dissipation data.
10.11 Resistance to short circuit
It is the responsibility of the manufacturer of the electrical panel. Observe the default values of the equipment.
10.12 EMC
It is the responsibility of the manufacturer of the electrical panel. Observe the default values of the equipment.
10.13 Mechanical function
For the device, the requirements are met if the information in the installation instructions (IL) is observed.
TECHNICAL DATA ACCORDING TO ETIM 8.0
low voltage electrical appliances (EG000017) / AC changeover contact (EC000066)
Technique Of Ar., Electr., Energy, Tecn. Switchgear, Network & Mains Process / Low Voltage Switching Technology / Contactor (Ns) / Power Contactor ([email protected] [AAB718015])
nominal pilot supply voltage Us for AC 50 Hz
0 – 0 V
nominal pilot supply voltage Us for AC 60 Hz
0 – 0 V
nominal pilot supply voltage Us for DC
24 – 24 V
type of voltage for the drive
A.D
rated operating current Ie for AC-1, 400 V
22 A
rated operating current Ie for AC-3, 400 V
9 A
rated operating power for AC-3, 400 V
4 kW
rated operating current Ie for AC-4, 400 V
6 A
rated operating power for AC-4, 400 V
2.5 kW
NEMA rated operating power
3.7 kW
suitable for series installation
no
number of auxiliary contacts, closing contacts
1
number of auxiliary contacts, rest contacts
0
type of main electrical circuit connection
screw connection
number of opening contacts, main contacts
0
number of closing contacts, main contacts
3
APPROVALS
Product Standards
IEC / EN 60947-4-1

Contact us to discover KLOCKNER MOELLER – DILM9-10-276506 – Connector. ICDC offers new and original components, ready in stock to be shipped via DHL Express!

Check our Electromechanical section to discover more about ICDC catalog: a large selection of industrial spare parts including Curves, Door Lockers and Drivers, beyond Connectors-Contactors.

Are you looking for KLOCKNER MOELLER by EATON industrial components?

ICDC offers online a wide selection of Connectors-Contactors of the most important OEMs like LAPPKABEL, MERLIN GERIN and MPM, beyond KLOCKNER MOELLER by EATON.
ICDC, Your Industrial One Stop Shop for Components!
