FESTO - 192218 - Proximity Switch
LIMIT SWITCH SPC11-MTS-AIF
Lead Time:
Next Day Shipping + DHL Express Transit Time€ 156,50 per piece, VAT excluded
Out of stock
FESTO – 192218 – Proximity Switch
Main Category: Electromechanical | Sub-Category: Proximity Switches | Status: New Original ComponentsFESTO Part Number: 192218 | ICDC Part Number: ICDC-000536
Description:

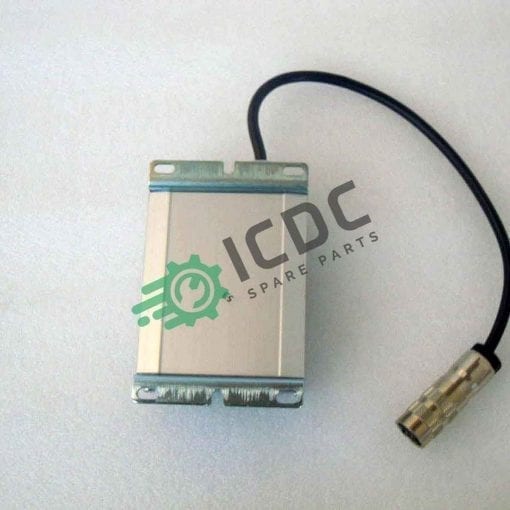

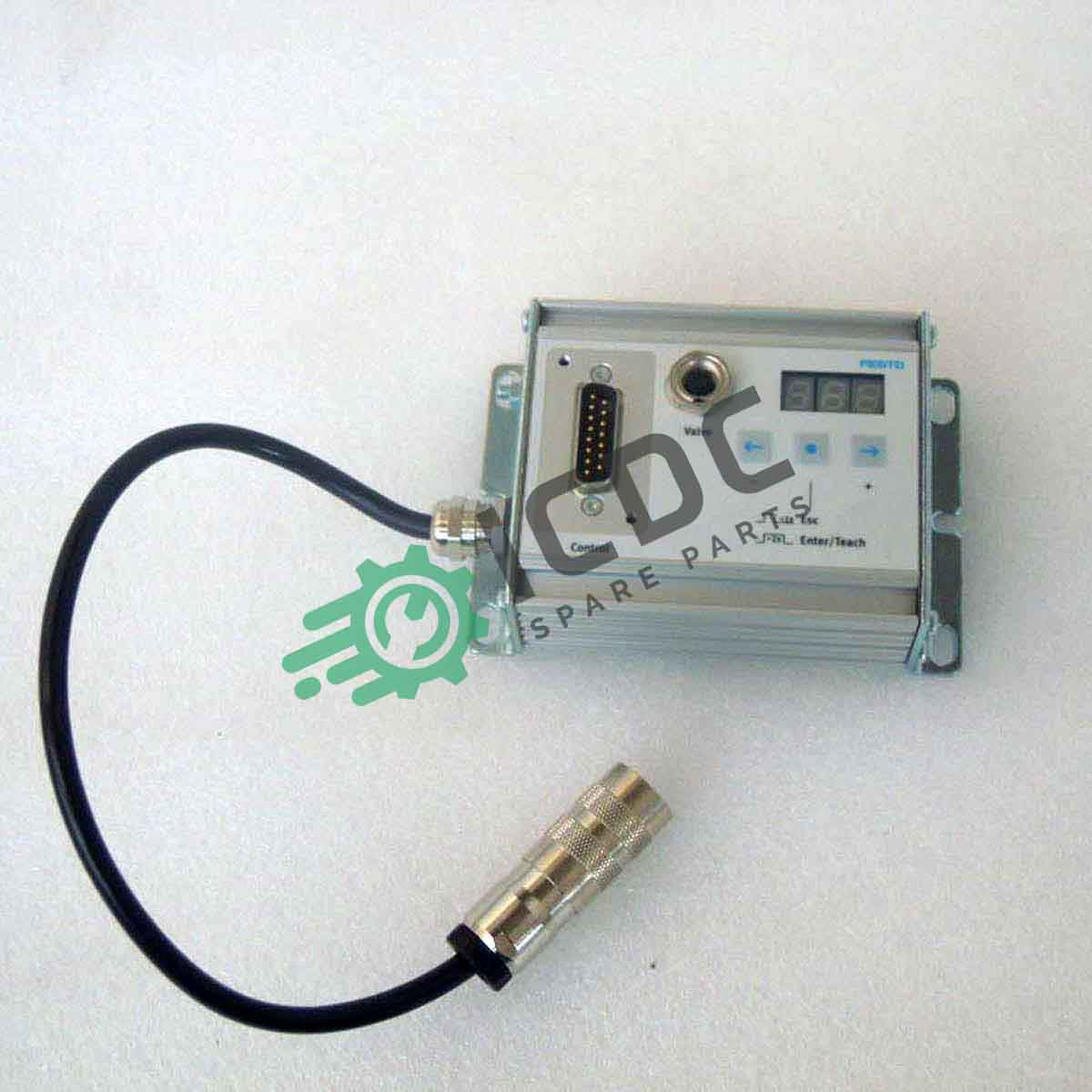

END POSITION CONTROLLER SPC11-MTS-AIF COD. 192218
FESTO – 192218 – Switch
| Control signals | Input, remote/teach-in/left/right Input, position 1/2/3/4 Output, error-ready Output, position 1/2/3/4 |
| Display | 3-place Colour: red Seven-segment display |
| Control elements | 3 keys Membrane keypad |
| Fuse protection, output | Electronic Max. tripping current: 500 mA Via sum of all outputs |
| Number of digital outputs | 5 |
| Number of digital inputs | 8 |
| Type of outputs | Per IEC 61131-2 Positive logic (PNP) No electrical isolation |
| Type of inputs | Per IEC 61131-2 Positive logic (PNP) No electrical isolation |
| Debouncing time, inputs | 20 ms |
| Max. current consumption with proportional valve | 1.1 A |
| Max. current consumption without proportional valve | 70 mA |
| Nominal operating voltage DC | 24 V |
| Current consumption, input | 4 mA |
| Current-carrying capacity per output | 0.1 A |
| Permissible voltage fluctuation | +/- 25 % |
| Authorisation | RCM Mark |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Continuous shock resistance per DIN/IEC 68, parts 2 – 82 | Tested in accordance with severity level 2 |
| Relative air humidity | 0 – 95 % non-condensing |
| Protection class | IP65 to IEC 60529 |
| Vibration resistance per DIN/IEC 68, parts 2 – 6 | Tested in accordance with severity level 1 |
| Ambient temperature | 0 … 50 °C |
| Product weight | 400 g |
| Electrical connection type | 15-pin SUB-D Plug |
| Electrical connection, proportional valve | 7-pin |
| Electrical connection, displacement encoder | 6-pin |
| Cable length | 0.3 m |
