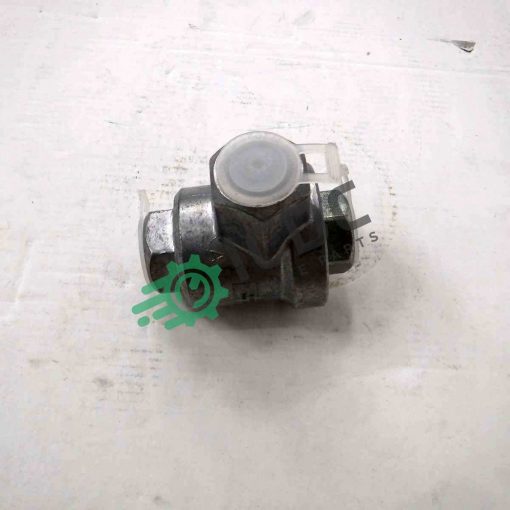

FESTO – SE 1/2″ B-9688 – Rapide Discharge
Main Category: Pneumatic | Sub-Category: Equipment | Status: New Original Components
FESTO Part Number: B-9688 | ICDC Part Number: ICDC-010336
Description:
RAPID DISCHARGE SE 1/2″ B-9688
Valve function | Quick venting |
Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 |
Fastening type | Screwable |
Normal nominal flow venting [l/min] | 6.480 |
Normal nominal flow venting 6->5 bar [l/min] | 4.560 |
Operating pressure [bar] | 0.3 to 10 |
ambient temperature [°C] | -20 to 75 |
Housing material | Aluminium die casting |
Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
Nominal width [mm] | 15 |
installation position | arbitrary |
Information about operating and control medium | Oiled operation possible (required in further operations) |
Medium temperature [°C] | -20 to 75 |
Product weight [g] | 200 |
Pneumatic connection 3 | G1/2 |
Seals material | NBR |
