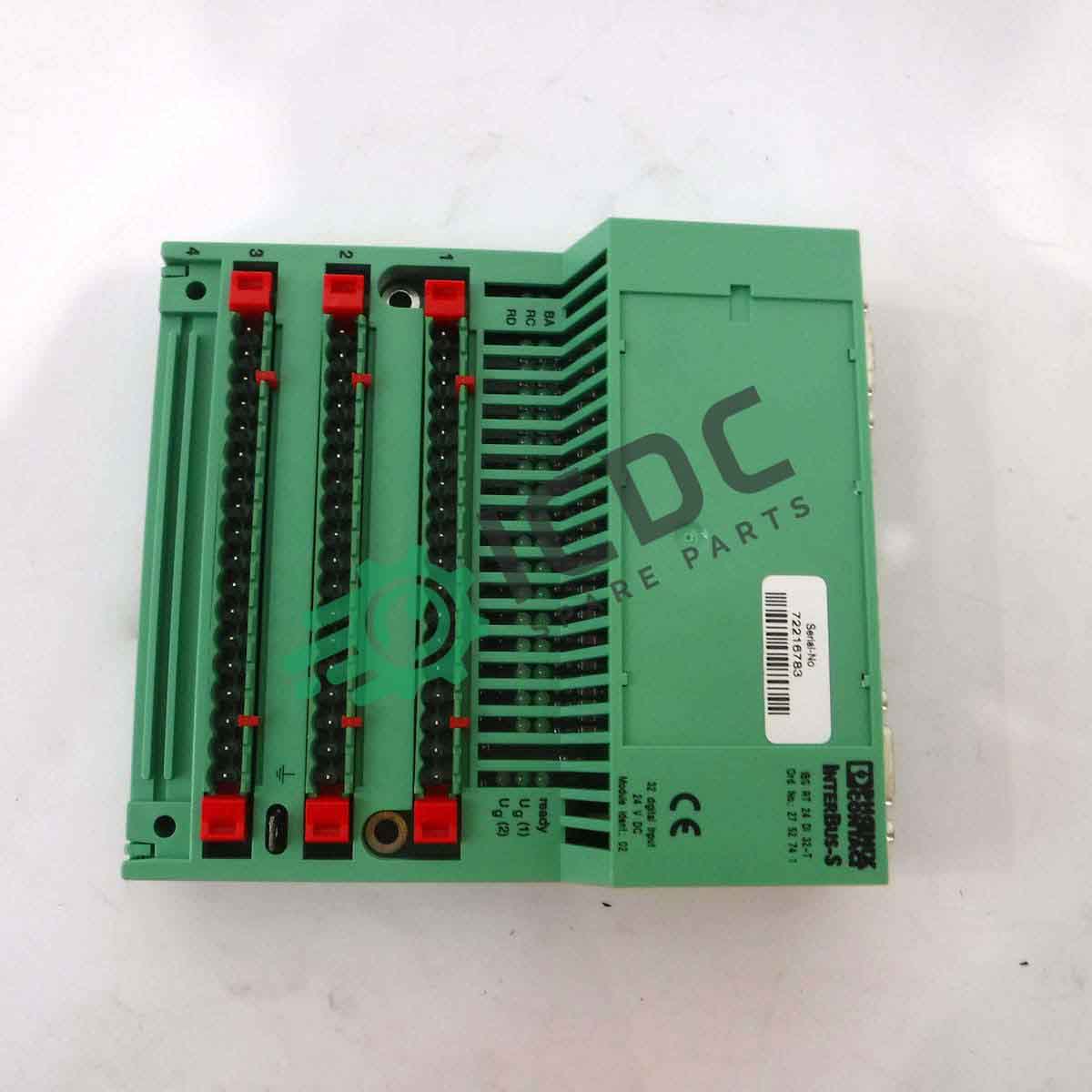

PHOENIX – IBS RT 24 DI 32-T – Board
IBS RT TAB 24 OF 32-T
PHOENIX – IBS RT 24 DI 32-T – Board
INTERBUS RT 24 hour Phoenix ibs modules with digital inputs:
These INTERBUS RT input modules such as the IBS RT 24 DI 32-T have been designed to offer an economical solution for use in machines and systems with a limited number of I / Os. Thanks to the integration of the bus terminal function in the modules, the structure is extremely compact.
The digital input modules are available with 16 or 32 outputs in 24 V DC, 120 V AC and 230 V AC versions.
The sensors are connected with 1, 2, 3, or 4-wire technology directly on the module, either via COMBICOM screw terminals or via spring-loaded connectors. The individual terminal blocks are coded, in order to prevent any errors during installation.
Using these plug-in terminals and the D SUB connectors for the INTERBUS connection, the wiring is vertical. In the event of faults or modifications, the modules can be quickly replaced with a simple intervention.
The contact with the protective earth occurs directly by inserting the modules on the support rail or during mounting on a surface.
The status LEDs and the bus diagnostic displays provide all the information about the status of the unit at any time.
Join us!
Product Family: Electronics>Boards
ICDC Part Number: ICDC-009723
PHOENIX Part Number: IBSRT24DI32T
Status: New Original Components
